How to Setup XTRF with Apache HTTP server as a reverse proxy and SSL from Let's Encrypt

Updated: 11 March, 2022 seen 48

XTRF is a Polish translation management system available to install as SAAS or on your own server (both Windows and Linux). In today's article, I will keep notes on How to Setup XTRF with Apache HTTP server as a reverse proxy and SSL from Let's Encrypt

The company I'm assisting in server works has been using the XTRF translation management system since 2011 (if not earlier). A few years ago I helped to perform a major upgrade (from version 2 to version 8).

How To Install XTRF 8 on Ubuntu 18.04

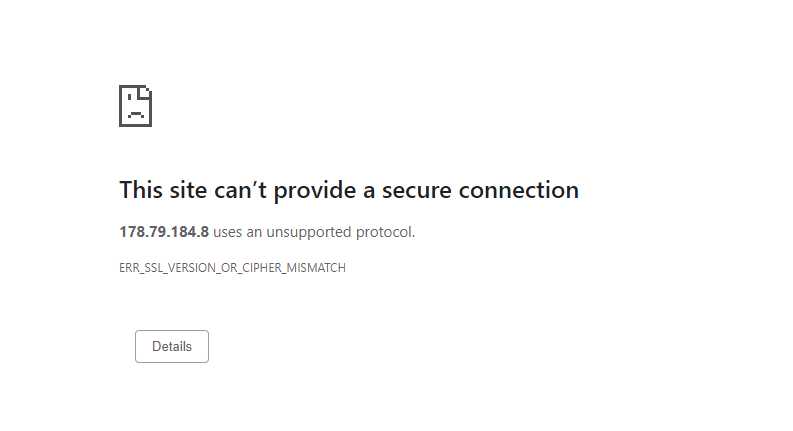

The system was launched over the internet, but recently the latest Google Chrome update stopped supporting the system saying: ERR_SSL_VERSION_OR_CIPHER_MISMATCH

ERR_SSL_VERSION_OR_CIPHER_MISMATCH
ERR_SSL_VERSION_OR_CIPHER_MISMATCH

XTRF runs on some Jboss server, something I'm not very well familiar with, but as a few years ago we already had a similar problem with ciphers,  at the start I was looking to fix this in JBoss settings (standalone.xml)

How To Fix "Server has a weak ephemeral Dillie-Heffman public key" For Jboss Server

Though, after a few emails with the XTRF support team I got a few pointers to start with, and for my surprise, they were recommending using Apache as a reverse proxy/  here is the article from the XTRF knowledge base: SSL Certificate Installation

First things first - A record should be configured for DNS purposes, Apache with modules should be enabled, for SSL part I decided to use Let's Encrypt free SSL certificate, last but not least we should configure virtual hosts.

Let's start with Apache:

sudo nano /etc/apache2/sites-available/xtrf.conf

paste

# SSL Stapling configuration
#SSLUseStapling on SSLStaplingCache "shmcb:logs/stapling-cache(150000)"

<VirtualHost *:80>
        ServerName xtrf.caucasustranslations.com


        <Directory />
                Options none
                AllowOverride None
        </Directory>

        #just redirect everything to https
        RewriteEngine On
        RewriteCond %{HTTPS} off
        RewriteRule (.*) https://%{HTTP_HOST}%{REQUEST_URI}
        ProxyRequests Off
        LogLevel notice
        ServerSignature Off

        ErrorLog "/var/log/apache2/error-xtrf.log"
        CustomLog "/var/log/apache2/access-xtrf.eu.log" combined

RewriteCond %{SERVER_NAME} =xtrf.caucasustranslations.com
RewriteRule ^ https://%{SERVER_NAME}%{REQUEST_URI} [END,NE,R=permanent]
</VirtualHost>

<VirtualHost *:443>
        ServerAdmin info@caucasustranslations.com
        ServerName xtrf.caucasustranslations.com


        <Directory />
                Options none
                AllowOverride None
        </Directory>

        RewriteEngine On
        RewriteRule ^[/]?$ /xtrf/ [R]
        ProxyRequests Off

        ProxyPreserveHost On
        SetEnv proxy-nokeepalive 1

        LogLevel notice
        ServerSignature Off

#        SSLEngine On
 #       SSLProxyEngine On
 #      SSLProxyVerify none
 #     SSLProxyCheckPeerCN off
  #    SSLProxyCheckPeerName off

#    SSLCompression off
#    SSLCipherSuite EECDH+AESGCM:EDH+AESGCM:AES256+EECDH:AES256+EDH:ECDHE-RSA-AES128-GCM-SHA384:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA128:DHE-RSA-AES128-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES128-GCM-SHA128:ECDHE-RSA-AES128-SHA384:ECDHE-RSA-AES128-SHA128:ECDHE-RSA-AES128-SHA:ECDHE-RSA-AES128-SHA:DHE-RSA-AES128-SHA128:DHE-RSA-AES128-SHA128:DHE-RSA-AES128-SHA:DHE-RSA-AES128-SHA:AES128-GCM-SHA384:AES128-SHA128:AES128-SHA128:AES128-SHA:AES128-SHA:HIGH:!aNULL:!eNULL:!EXPORT:!DES:!MD5:!PSK:!RC4
#      SSLProtocol All -SSLv2 -SSLv3 -TLSv1 -TLSv1.1
#    SSLHonorCipherOrder On
    Header always set X-Frame-Options SAMEORIGIN
    Header always set X-Content-Type-Options nosniff

        ProxyPass /server-status !
        ProxyPass / ajp://127.0.0.1:8009/

        LogFormat "%h %l %u %t \"%r\" %>s %O \"%{Referer}i\" \"%{User-Agent}i\" **%T/%D** \"%{Content-Type}o\"" combined2
        ErrorLog /var/log/apache2/error-xtrf_ssl.log
        CustomLog /var/log/apache2/access-xtrf_ssl.log combined2
SSLCertificateFile /etc/letsencrypt/live/xtrf.caucasustranslations.com/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/xtrf.caucasustranslations.com/privkey.pem
Include /etc/letsencrypt/options-ssl-apache.conf
</VirtualHost>

now enable it

sudo a2ensite xtrf.conf

restart apache

sudo systemctl restart apache2

if there are no errors, you can proceed, if there are errors, follow the instructions on screen

Installing Certbot

How To Secure Apache with Let's Encrypt on Ubuntu 18.04

To obtain an SSL certificate with Let’s Encrypt, you need to install the Certbot software on your server. For this tutorial, we’ll use the default Ubuntu package repositories to install Certbot.

Run the following command, which will install two packages: certbot and python3-certbot-apache. The latter is a plugin that integrates Certbot with Apache, so that it’s possible to automate obtaining a certificate and configuring HTTPS within your web server with a single command:

sudo apt install certbot python3-certbot-apache

once installation is finished, enter

sudo certbot --apache

now the certbot should do the rest, and we should just answer on a few answers. If you allowed, certbot will also cofnigure virtual host and add all the nescesarry lines

Hope it helps!
